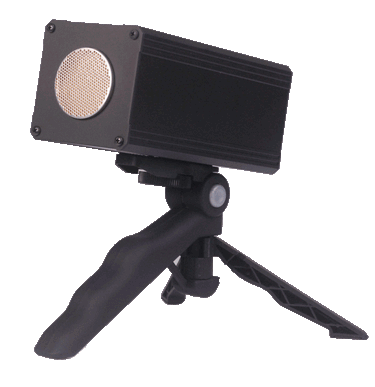

AT100 BatLure

Product Description
$1,650.00
Maximum quantity available reached.

The AT100 is a small, portable, ultrasonic transmitter that is designed to aid field research. It employs a wide bandwidth ultrasonic element along with an efficient wideband amplifier to produce an impressive 100dB SPL transmit capability in a small, light-weight package.

The AT100 is designed to be operated by a Windows based lap-top computer (this can even be a repurposed Windows XP machine). It connects a lap-top through a high speed USB 2.0 interface. The bundled GTools playback software allows the user to select between prerecorded files and play them back through the ultrasonic transmitter. The software supports the industry standard WAV file format and works with files generated by SPECT’R as well as others. There are flexible options to create playlists with custom time delays between playbacks, and even an option to turn the transmitter in to an acoustic deterrent.

The AT100 ultrasonic transmitter is designed for low power operation. The unit itself requires only 2 Watts of power and it is capable of operating off of power supplied through the USB interface. Optionally, the AT100 can accept powered from an external 9 to 12 Volt source or battery pack.

One of the potential applications is bat calling. It is well known by bat researchers that bats will come to investigate and aid other bats which are in distress.  Bat netting projects are more productive after catching a few bats because the distress calls, of those caught, attract even more bats. Playing back distress calls or certain social calls has the potential to increase bat activity and increase the productivity of your netting projects and field surveys. Similarly, using Jammr software also included, the device can be used as a low power bat deterrent.

Product Highlights

  • Small, Light weight and portable
  • Transmit power: 100 dB SPL @ 1m
  • Wide frequency range: 20 to 120 KHz
  • Low operating power: 2 Watts
  • High speed USB 2.0 interface
  • Durable aluminum enclosure
  • 1/4-20 camera mount thread
  • Bundled with GTools playback software
  • The AT100's speaker handles high frequency sound better than other available options and is best suited for species of interest such as myotis spp. and all other similarly high-F species. For research targeting primarily low frequency species, please consider the Apodemus BatLure

Specifications:

  • Frequency Range : 10 to 120 KHz
  • Maximum Transmit Power : 100 dB SPL @ 50KHz
  • Dynamic Range : > 70 dB
  • Interface: USB 2.0 (High-Speed)
  • Power Requirements : < 2.5 Watts

    In the Box:

    • AT100 BatLure (tripod not included)

        Available  Usually Ships 7-10 Days


        "In Stock" items may ship same day to up to 3 business days after placing your order.

        "Out of Stock" items may still be purchased, but realize these items may be built-to-order or we may be at the mercy of our vendors for parts of your order or product. Shipping for out of stock items may be days or weeks after placing your order. Some speciaity items may have estimated availability mentioned in their product description above.

        All international orders must be paid in full via credit card or international money order before shipping.  We currently accept American Express, Visa, MasterCard and bank/wire transfers.

        For international orders, any duties, tariffs or broker fees are not included in the order amount and will be collected by the shipper upon delivery. Any such fees are the responsibility of the customer.

        Please ensure the shipping address you provide can accept UPS deliveries. BCM is not responsible for any fees or delays incurred from an incorrect shipping address.

        In Spanish: Todos los pedidos internacionales deben pagarse en su totalidad mediante tarjeta de crédito o giro postal internacional antes de su envío. aceptamos American Express, Visa y Mastercard.  No somos capaces de aceptar banco.

        Para los pedidos internacionales, los impuestos, aranceles u honorarios de agente no están incluidos en el orden cantidad y serán recogidos por el cargador a la entrega. estas matrículas son responsabilidad del cliente.

        Por favor garantizar la dirección del envío que usted proporcione puede aceptar envíos ups. bcm no se hace responsable por el pago de honorarios o retrasos de una incorrecta dirección de envío.

        What states does sales tax apply?
        If products are shipped to PA, you will be charged sales tax. When you enter your shipping address to any other state, the PA sales tax is removed.

        I am tax exempt, federal/state/tribal buyer located in PA, how do I purchase?
        Tax Exempt Businesses/Organizations in PA only: create an account here: https://batmanagement.com/account/register  and then email us with your account name, order items quantities, shipping and billing address, and include your tax exempt number. You will then be sent a link to your order which you can pay online normally. We will also set your account to be tax-exempt so that future orders from that account can be made without extra steps.

        I am tax exempt, federal/state/tribal buyer located outside of PA, how do I purchase?
        Simply add items to your cart and checkout. When you enter your shipping address outside of PA, the PA sales tax will be removed. BCM does not collect tax for any other states. It is not necessary to contact us with tax-exempt paperwork, etc. if you are outside of PA.

        Do you accept Purchase Orders (PO)?
        We accept POs from recognized US based organizations for items shipped domestically. We reserve the right to refuse any PO. There may be a 10% service fee applied to all POs.

        Can I cancel attending a workshop/event?
        Full refunds are given if cancelled 28 days prior to the start of an event. Event registrations are transferable. For more details please see the Workshop Training General Info & Cancellation Policy

        What can I return?
        You may return new, unopened items sold within 30 days of delivery for a full refund. Shirts, hats, and mugs are made to order and are not returnable.

        When will I get my refund?
        Most refunds are fully refunded in 3-5 business days after we receive and process your return.

        Does BCM do replacements?
        We can only replace the exact item and version you ordered, and you are responsible to return the damaged item within 30 days. If you want to exchange for a different item, you will need to return the item and place a new order.

        Pettersson D500x and M500 Bat Detectors Return and Exchange Policy
        All detectors are tested by BCM staff before shipping to customers. Please contact BCM first detailing the issue you are having with the hardware and obtain a Return Authorization. Should email or phone troubleshooting fail to resolve the issue, you should send the unit in suitable packaging to BCM, with the RA number written on the packaging.

        BCM will confirm the unit is defective was not abused or water damaged. BCM will replace the unit at our discretion usually within one week. Units requiring repairs may take 6-8 weeks.

        Pettersson factory warranty is one year.

        D500x External Microphone Return Policy
        All microphones are tested by BCM staff before shipping to customers. Please contact BCM first detailing the issue you are having with the Microphone and obtain a Return Authorization. Should email or phone troubleshooting fail to resolve the issue, you should send the unit in suitable packaging to BCM, with the RA number written on the packaging.

        DOA microphones are replaced immediately at no charge. There is a $150 for refurbishing used microphones, shipped immediately if in stock.

        Electronics
        Electronics purchased from BCM are easily returned within 30 days of receipt of shipment. These items must be in new condition with original packaging and accessories. All bat detectors sold by BCM are supported by the device's manufacturers. In the unlikely event a detector appears to be defective, please contact the customer support network for the computer manufacturer to have it serviced under warranty. Pettersson D500x/M500 devices have specific policies, see above.

        Software
        Software titles purchased from BCM are easily returned within 30 days of receipt of shipment. These items must be unopened and still in their plastic wrap.

        General items

        Other items purchased from BCM can only be returned if:

        • The return is packaged and shipped in the original packaging.
        • The items are still in new condition.
        • You ship your return within 30 days of receipt of the original shipment.

        Any returns that do not meet the above qualifications may receive a reduced refund or be returned to the purchaser. Some items may incur a restocking fee as these items must be inspected, tested, and repackaged. If a restocking fee applies it will be noted on the product information page.  All returns will be less original shipping costs.

        QUESTIONS & ANSWERS

        Ask BCM a Question

        • Is there an option for expedited shipping of your products? Looking if its possible to arrive before Aug 3rd in Tokyo Japan

          The manufactrer usualy needs a few week lead time on this item, I beleive it is too short notice to meet your Aug 3 need.

        • Hello, I already have this speaker but I am in need of some information. Can you send me the specifications of this speaker in terms of directionality? If you have the curve response of the speaker with the directionality beam it would be great. Thanks!

          Hello- please see the manufacturer's website http://binaryacoustictech.com/batpages_files/at100.htm for this product, there is a PDF spec sheet available at the bottom of the page. For technical questions contact

          Information: info@binaryacoustictech.com

        • Hello, With the BAT AT100 lure, can you tell me more about the way you typically set up the laptop and the weatherproofing? I am trying to figure out how long we could set these lures out for on a given night. Thank you!

          Hello Joy- The AT100 can be run by a very old PC.. think small Windows XP netbook. Set Windows to never sleep, and to keep running with the lid closed. You can add a large 50000 mAh lith-ion battery which will run a Surface Pro, for example, for a couple of days. These items fit in a metal locking ammo box such as https://batmanagement.com/collections/deployment-supplies/products/acoustic-deployment-case and simply cut out a notch for the cable. I would leave the box standing on end with the notch on the bottom to minimize water intrusion, hang it on a tree if in a potential wet area. Set the speaker as you would a bat detector microphone, horizontal if worried about rain. You would also want to wrap the rear of the speaker to shield the USB port from water. Neither the AT100 or the BatLure is intended to be weatherproof, but the AT100 is probably more weatherproof.

          If you're not really leaving the site area, some put everything (and more) in a pelican case and just leave the lid ajar for the cable. This would keep dew and a light rain off the computer. Thanks- JC

        • Hi, I want to purchase one of these but I am in the UK. Can you ship here on my fedex account? (so there will be no shipping fees..) Could you also quote to ship here to the UK? Also, what payment methods do you accept?

          Hello Yes we will ship to FexEx/UPS accounts. We accept Visa, Mastercard, American Express, JCB, Discover, and Diners Club debit and credit cards. For a shipping quote you must email jmumper@batmanagement.com with your complete shipping address. Only complete shipping addresses can be used to provide a shipping quote. Jenni will take your order and arrange carrier acoount shipping.

        • can it work on a win11 PC? if not any similar product could?

          Yes the software that drives this speaker will run on Windows 11. For more specifics contact http://www.binaryacoustics.com
