Pettersson D1000x

Product Description
$4,499.00
Maximum quantity available reached.

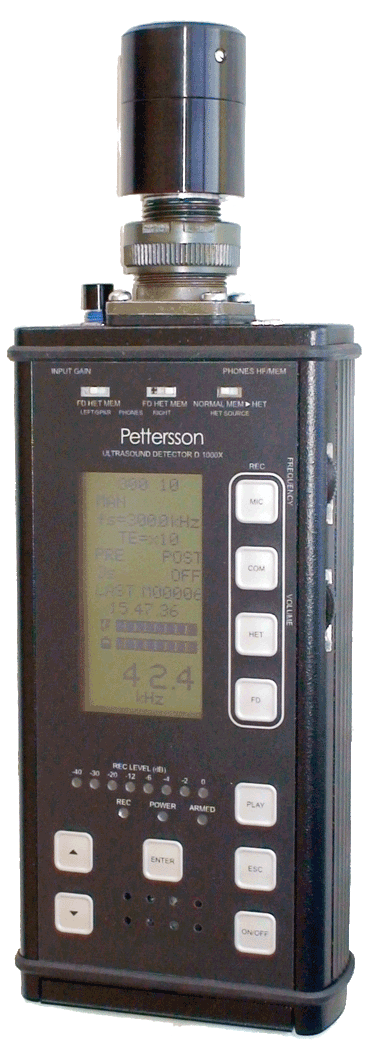

The Pettersson D-1000X is the professional ultrasound detector based on the latest technology. This detector features Heterodyne (HET), Frequency Division (FD), Time-expansion (TE), and also a built-in 16-bit recording system using a Compact Flash (CF) card as the storage medium. It is equipped with the Pettersson, high-quality capacitance microphone which has been further improved to give lower noise, wider dynamic range and lower distortion. This is a speciality custom microphone with each one assembled in part by Lars Pettersson himself. The recordings are second to none and is possibly the finest microphone for recording bats available in the world.

The D-1000X was the first bat detector with a built-in digital “tape recorder,” relieving the user from the hassle of operating a separate recorder or laptop with connecting cables. The D100x can directly record pre-determined file lengths, but also can make a single recording as long as the CF card is large. Unlike the D240x which you are limited to a 3.4 second recording of that voucher call, the D1000x can record superb audio for as long as you can still see the bat. No more "missing" the best part of a light tagged or spotlighted bat.

The detector can be configured to work in a variety of operating modes, but thanks to the use of “Profiles,” switching between different modes is made instantly. Each profile contains all the selectable settings such as sampling rate, triggering mode, time expansion factor and LED intensity and can be prepared in advance and saved in the detector, ready for your next session.

At any time either the direct ultrasonic signal, the heterodyne signal or the frequency division signal can be recorded onto the CF-card. Spoken comments can be recorded by speaking into the microphone while recording in the direct mode, or in a special comment recording mode. The recording time is limited only by the available space on the CF-card.

Upon completing a recording, the signal will be automatically replayed in time expanded form, if this function is enabled. Time expansion factors from 1 (original speed) to 30 can be chosen.

Recordings can be made by manually starting and stopping the recording or through automatic, unattended level-activated or frequency-selective triggering. Pre- and post-triggering preferences with a variety of different settings can be used, allowing the file to contain up to 50 seconds of recording before and/or after the triggering event. The recording behavior can be highly customized for any situation.

The *.wav sound files on the CF-card are stamped with date and time and can be read directly on a PC. The D-1000X also has a serial (RS232) GPS input, making it possible to save location data in the files.



Pettersson D1000x Features:

  • FD, HET, FD and TE technology
  • Selectable stereo headphone port: listen to TE playback in one ear while monitoring real time bat activity in another using HET or FD
  • Uses a CF-card to store signals as *.wav files
  • Recorder will play back any file on the CF card
  • Files can be analyzed using SonoBat or Batsound software
  • Recording and playback at sampling rates from 32 to 768 kHz
  • 16-bit Analog-to-Digital converter for increased dynamic range
  • Integrated, adaptive anti-aliasing filter
  • Manual or level-triggered recording modes for unattended sampling
  • Accurate recording level indicator
  • Recording time limited only by CF-card space, can also record directly to SonoBat
  • Adjustable LCD background intensity
  • Battery and CF space indicators
  • Small size: 170 x 80 x 35mm without microphone
  • Low weight: 600g including batteries
  • Powered from internal batteries or external power supply, 7-10V

Available, additional delivery time required: Please write for estimated shipping times.


"In Stock" items may ship same day to up to 3 business days after placing your order.

"Out of Stock" items may still be purchased, but realize these items may be built-to-order or we may be at the mercy of our vendors for parts of your order or product. Shipping for out of stock items may be days or weeks after placing your order. Some speciaity items may have estimated availability mentioned in their product description above.

All international orders must be paid in full via credit card or international money order before shipping.  We currently accept American Express, Visa, MasterCard and bank/wire transfers.

For international orders, any duties, tariffs or broker fees are not included in the order amount and will be collected by the shipper upon delivery. Any such fees are the responsibility of the customer.

Please ensure the shipping address you provide can accept UPS deliveries. BCM is not responsible for any fees or delays incurred from an incorrect shipping address.

In Spanish: Todos los pedidos internacionales deben pagarse en su totalidad mediante tarjeta de crédito o giro postal internacional antes de su envío. aceptamos American Express, Visa y Mastercard.  No somos capaces de aceptar banco.

Para los pedidos internacionales, los impuestos, aranceles u honorarios de agente no están incluidos en el orden cantidad y serán recogidos por el cargador a la entrega. estas matrículas son responsabilidad del cliente.

Por favor garantizar la dirección del envío que usted proporcione puede aceptar envíos ups. bcm no se hace responsable por el pago de honorarios o retrasos de una incorrecta dirección de envío.

What states does sales tax apply?
If products are shipped to PA, you will be charged sales tax. When you enter your shipping address to any other state, the PA sales tax is removed.

I am tax exempt, federal/state/tribal buyer located in PA, how do I purchase?
Tax Exempt Businesses/Organizations in PA only: create an account here: https://batmanagement.com/account/register  and then email us with your account name, order items quantities, shipping and billing address, and include your tax exempt number. You will then be sent a link to your order which you can pay online normally. We will also set your account to be tax-exempt so that future orders from that account can be made without extra steps.

I am tax exempt, federal/state/tribal buyer located outside of PA, how do I purchase?
Simply add items to your cart and checkout. When you enter your shipping address outside of PA, the PA sales tax will be removed. BCM does not collect tax for any other states. It is not necessary to contact us with tax-exempt paperwork, etc. if you are outside of PA.

Do you accept Purchase Orders (PO)?
We accept POs from recognized US based organizations for items shipped domestically. We reserve the right to refuse any PO. There may be a 10% service fee applied to all POs.

Can I cancel attending a workshop/event?
Full refunds are given if cancelled 28 days prior to the start of an event. Event registrations are transferable. For more details please see the Workshop Training General Info & Cancellation Policy

What can I return?
You may return new, unopened items sold within 30 days of delivery for a full refund. Shirts, hats, and mugs are made to order and are not returnable.

When will I get my refund?
Most refunds are fully refunded in 3-5 business days after we receive and process your return.

Does BCM do replacements?
We can only replace the exact item and version you ordered, and you are responsible to return the damaged item within 30 days. If you want to exchange for a different item, you will need to return the item and place a new order.

Pettersson D500x and M500 Bat Detectors Return and Exchange Policy
All detectors are tested by BCM staff before shipping to customers. Please contact BCM first detailing the issue you are having with the hardware and obtain a Return Authorization. Should email or phone troubleshooting fail to resolve the issue, you should send the unit in suitable packaging to BCM, with the RA number written on the packaging.

BCM will confirm the unit is defective was not abused or water damaged. BCM will replace the unit at our discretion usually within one week. Units requiring repairs may take 6-8 weeks.

Pettersson factory warranty is one year.

D500x External Microphone Return Policy
All microphones are tested by BCM staff before shipping to customers. Please contact BCM first detailing the issue you are having with the Microphone and obtain a Return Authorization. Should email or phone troubleshooting fail to resolve the issue, you should send the unit in suitable packaging to BCM, with the RA number written on the packaging.

DOA microphones are replaced immediately at no charge. There is a $150 for refurbishing used microphones, shipped immediately if in stock.

Electronics
Electronics purchased from BCM are easily returned within 30 days of receipt of shipment. These items must be in new condition with original packaging and accessories. All bat detectors sold by BCM are supported by the device's manufacturers. In the unlikely event a detector appears to be defective, please contact the customer support network for the computer manufacturer to have it serviced under warranty. Pettersson D500x/M500 devices have specific policies, see above.

Software
Software titles purchased from BCM are easily returned within 30 days of receipt of shipment. These items must be unopened and still in their plastic wrap.

General items

Other items purchased from BCM can only be returned if:

  • The return is packaged and shipped in the original packaging.
  • The items are still in new condition.
  • You ship your return within 30 days of receipt of the original shipment.

Any returns that do not meet the above qualifications may receive a reduced refund or be returned to the purchaser. Some items may incur a restocking fee as these items must be inspected, tested, and repackaged. If a restocking fee applies it will be noted on the product information page.  All returns will be less original shipping costs.

QUESTIONS & ANSWERS

Ask BCM a Question

  • I want to know what is the best option between the u384 and the D1000x. What is the difference in aspects of technological innovation and seniority. Also in terms of quality in the study of identification of species and study of populations.

    The D1000x is first and foremost -the best- ultrasonic microphone we have -ever- used, hands down. It is better suited for active monitoring or labratory research where the best possible recording is desired and the device will be monitored (it is too expensive to leave unattended, etc.) It has a built in recorder with a trigger system that is user-definable, so it many be set to record under a variety of conditions and for various purposes (many people actually buy it to study something besides bats). The files are then offloaded from a memory card and viewed in analysis software such as BatSound or SonoBat. The D1000x is capable of 768kHz sampling rate, blowing the doors off most any device in it's price range.

    The u384 is intended to be used on a tablet running BatSoundTouch or SonoBatLIVE capture software. The recordings are then further viewed/sorted using SonoBat or other bat analysis software. It does not have the lab quality noise floor of the D1000x, but the capture software is more convienant to use. The 384 sampling rate is perfectly suitable for bats worldwide, and extending the mic on a pole will maximize the capabilities. The u384 is mass produced therefore making it cost effective (mic+tablet+long cable ~$600?) wheras the D1000x device is a unique custom lab instrument.
